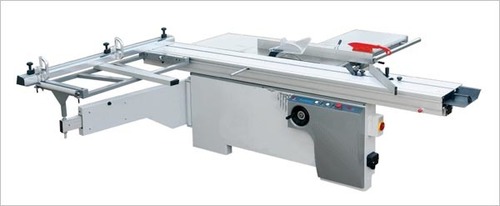

Panel Saw Machine
318000 INR/Piece
Product Details:
- Product Type Panel Saw Machine
- Machine Type Industrial Wood Cutting Machine
- Machine Style Horizontal Sliding Table
- Capacity Max cutting length: 3200 mm, Max cutting height: 80 mm
- Voltage 380 V
- Power 5.5 kW
- Automation Semi-Automatic
- Click to View more
X
Panel Saw Machine Price And Quantity
- 318000 INR/Piece
- 1 Piece
Panel Saw Machine Product Specifications
- 380 V
- Industrial Wood Cutting Machine
- 780 kg
- Horizontal Sliding Table
- Max cutting length: 3200 mm, Max cutting height: 80 mm
- Heavy Duty Induction Motor
- Panel Saw Machine
- 3200 mm x 2500 mm x 1050 mm
- 5.5 kW
- Semi-Automatic
- 5000 RPM
- White with Blue Accents
Panel Saw Machine Trade Information
- Letter of Credit (L/C), Telegraphic Transfer (T/T), Cheque, Cash Advance (CA)
- 100 Piece Per Month
- 10 Days
- STANDARD PACKAGING
- All India
Product Description
Panel saw is a type of sawing machine which is used in the cutting of large pieces of wood for the production of highly finished products and parts that are required for the manufacturing of the furniture and various other wooden structures. It is provided with horizontal bed on which the work piece is placed for the cutting operation. It is manufactured with the help of best quality of material which imparts greater strength to the machine frame. Panel saw is equipped with a slotted thin round cutter which rotates at very high speed with the help of a high performance motor.
Technical Specification of Panel Saw
| Model | Ips/3200 |
| Dimension Of Sliding Table | 3200 X 360 Mm |
| Width Of Cut Between Saw Blade & Rip Fence | 1250 Mm |
| Saw Blade Diameter | 300 Mm |
| Height Of Cut | 80 Mm |
| Speed Of Main Saw Spindle | 4000/6000 Rpm |
| Spindle Diameter | 30 Mm |
| Tilting Saw Blade | 0 - 45 (90 - 45) |
| Main Motor | 4 Kw |
| Scoring Saw Blade Diameter | 120 Mm |
| Speed Of Scoring Saw Blade | 8000 Rpm/Min |
| Scoring Spindle Diamter | 20 Mm |
| Scoring Motor | 0.75 Kw |
Engineered for Efficiency and Precision
This panel saw is designed for seamless wood cutting operations, offering a maximum cutting length of 3200 mm and height of 80 mm. Its high-speed 5000 RPM motor and precision linear guide rails deliver straight, splinter-free cuts, making it an ideal machine for both bulk processing and customised woodwork.
Quality and Durability in Every Cut
With a sliding table made from anodized aluminium and a sturdy industrial build, this machine offers longevity and resilience even during intensive daily use. The 5.5 kW heavy-duty induction motor ensures consistent performance, while the dust extraction system keeps the workspace clean and safe, enhancing overall productivity.
Safety First, Always
Operator safety is guaranteed with an integrated blade guard and emergency stop switch. Manual controls, clearly marked with indicator switches, allow for intuitive operation, minimizing risk during cutting and adjustment. Every detail is engineered to meet industrial safety standards.
FAQs of Panel Saw Machine:
Q: How does the machine ensure precise and smooth wood cuts?
A: The panel saw machine is equipped with a 300 mm main saw blade, precision linear guide rails, and a 3200 mm anodized aluminium sliding table, ensuring accurate, straight, and splinter-free cuts on various materials like plywood, MDF, and particle board.Q: What safety features are included with this panel saw?
A: The machine incorporates a robust blade guard and an emergency stop switch, both designed to protect the operator during use. These features comply with industrial safety standards to minimize risks in woodworking environments.Q: When should I use the scoring saw blade?
A: The 120 mm scoring saw blade should be used when cutting laminated or veneered panels. It scores the surface before the main blade cuts through, preventing chipping and ensuring clean edges on both sides of the material.Q: Where can this panel saw be utilized most effectively?
A: This industrial panel saw is suitable for woodworking factories, furniture workshops, and carpentry businesses involved in cutting large sheets of plywood, MDF, or particleboards. It is ideal for both large-volume processing and precision tasks.Q: What is the recommended process for dust extraction?
A: The machine features a 100 mm dust extraction port, which should be connected to an external dust collection unit. This setup ensures efficient removal of sawdust and debris, maintaining a cleaner and healthier work environment.Q: How does the sliding table material benefit the cutting process?
A: The sliding table is made from anodized aluminium, which is resistant to wear and corrosion, ensuring smooth table movement and long-lasting accuracy for consistent and precise cuts even in heavy-duty conditions.Q: What are the main advantages of using a semi-automatic, heavy-duty induction motor panel saw?
A: A semi-automatic operation provides a balance between operator control and efficiency, while the heavy-duty 5.5 kW induction motor delivers reliable, high-speed performance and reduced maintenance, making it suitable for continuous industrial use.Tell us about your requirement
