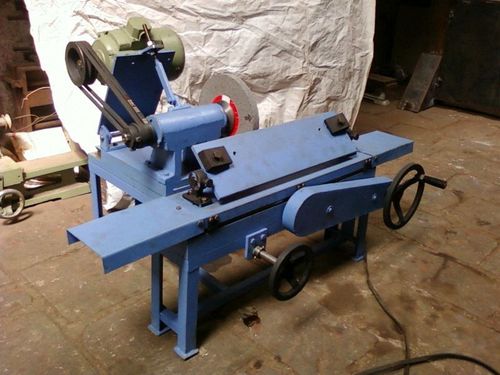

Knife Blade Grinding Machine

19000.00 - 26000.00 INR/Piece

Get a Price/Quote

Product Details:

Model Standard
Rotation Unidirectional
Product Type Knife Blade Grinding Machine
General Use Blade sharpening and grinding for industrial knives
Material Heavy Duty Steel
Type Surface Grinding Machine
Capacity Up to 1500 mm blade
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Knife Blade Grinding Machine Price And Quantity

Price Range 19000.00 - 26000.00 INR/Piece
Minimum Order Quantity 1 Piece

Knife Blade Grinding Machine Product Specifications

Rotation Unidirectional
Dimension (L*W*H) 1800 x 900 x 1400 mm
Table Slide Way V-flat
Floor Space 1800 x 900 x 1400 mm
Feature High accuracy, easy operation
Control System Manual
Color Green
Grinding Length 1500 mm
Grinding Wheel Size 200 x 125 x 32 mm
Type Surface Grinding Machine
CNC Or Not Not CNC
Automatic No
Grinding Wheel Speed 1400 RPM
Voltage 220/380 V
Fuel Tank Capacity 30 Litres
Table Size 1500 x 150 mm
Power 2 HP
Material Heavy Duty Steel
Spindle Speed 1400 RPM
Computerized No
Capacity Up to 1500 mm blade
Magnetic Chuck Size 1500 x 120 mm
Product Type Knife Blade Grinding Machine
Model Standard
General Use Blade sharpening and grinding for industrial knives
Weight (kg) 900 kg

Knife Blade Grinding Machine Trade Information

Supply Ability 100 Piece Per Month
Delivery Time 10 Days
Packaging Details STANDARD PACKAGING
Main Domestic Market All India

Product Description

We have been serving our clients with quality Knife Blade Grinding Machine used to Grinding A Knife at high speed. This Blade Grinder is widely acclaimed in woodworking industry. The machine is manufactured using latest technology and sophisticated engineering to meet various challenges of All types of industry. It consumes less power and saves cost. Being leading manufacturer and exporters of Blade Grinders we offer these products at really affordable prices.

Specifications of Knife Blade Grinding Machine:

Model No	IBG/1	IBG/2	IBG/3
Blade Size	13"	18"	24"
Grinding Wheel Size	6" X 0.5"	6" X 0.5"	6" X 0.5"
Grinding Wheel Speed	2800 RPM	2800 RPM	2800 RPM
Power Required HP/RPM	1/1440	1/1440	1/1440

Product Specification
Product Name	Knife Blade Grinding Machine
Product Code	Grinder M/C 01
Place of Origin	Rajkot, Gujarat, India
Material
Application
Order Details
Packaging Details	As Per Requirement
Delivery Time	10 to 15 Days
Port	Mundra, Gujarat, India
Minimum Order Quantity	1 PSC
Supply Ability	Any
Payment tearms	50% advance

Superior Grinding Precision and Capacity

Engineered for accuracy, this Knife Blade Grinding Machine achieves precise grinding results up to 0.02 mm. Its powerful 2 HP motor and solid magnetic clamping system facilitate efficient blade processing for lengths up to 1500 mm, meeting the high standards required in industrial knife shops.

Efficient Coolant and Lubrication Systems

Integrated with an effective coolant system powered by a reliable pump, this machine ensures optimal temperature control during operation. The centralized manual lubrication system prolongs machine life and ensures smooth, maintenance-friendly performance with minimal downtime.

Sturdy Construction and User-Friendly Operation

Constructed from heavy-duty steel, the grinder promises stability and durability in demanding industrial environments. The motorized table drive and manual controls permit easy blade adjustments for a variety of sharpening tasks, while noise levels remain below 85 dB(A) for user comfort.

FAQs of Knife Blade Grinding Machine:

Q: How does the coolant system enhance blade grinding operations?

A: The coolant system, integrated with a pump and a 30-litre tank, helps regulate temperature and prevent overheating during the grinding process, which maintains blade integrity and extends the lifespan of both the grinding wheel and blades.

Q: What blades can be processed with this grinding machine?

A: The machine can grind and sharpen industrial blades with lengths ranging from 100 mm up to a maximum of 1500 mm, making it suitable for a wide range of knife types used in various manufacturing sectors.

Q: When should the lubrication system be operated and how is it maintained?

A: The centralized manual lubrication system should be activated at the beginning of each operation and regularly during long grinding sessions. Maintenance involves checking oil levels and ensuring all moving components receive adequate lubrication to prevent wear.

Q: Where is the best place to install the Knife Blade Grinding Machine?

A: As a floor-mounted unit measuring 1800 x 900 x 1400 mm, it should be installed on a solid, level surface in a well-ventilated industrial workspace with proper electrical connections and adequate space for safe operation and maintenance.

Q: What is the process for clamping blades on this machine?

A: Blades are held securely using a magnetic clamping system, ensuring stability and safety during grinding. Simply place the blade on the magnetic chuck, activate the magnet, and adjust the table for the desired grinding length and travel.

Q: How is working speed adjusted for different sharpening needs?

A: The machine offers adjustable working speeds, allowing users to tailor grinding parameters according to blade material and sharpening requirements. Speed settings can be managed manually for optimum efficiency and finish quality.

Q: What are the key benefits of using this grinding machine for industrial knife sharpening?

A: Primary benefits include high grinding precision (0.02 mm), secure blade clamping, easy operation, low noise output, durable steel construction, and extended machine and blade life due to advanced cooling and lubrication systems.
